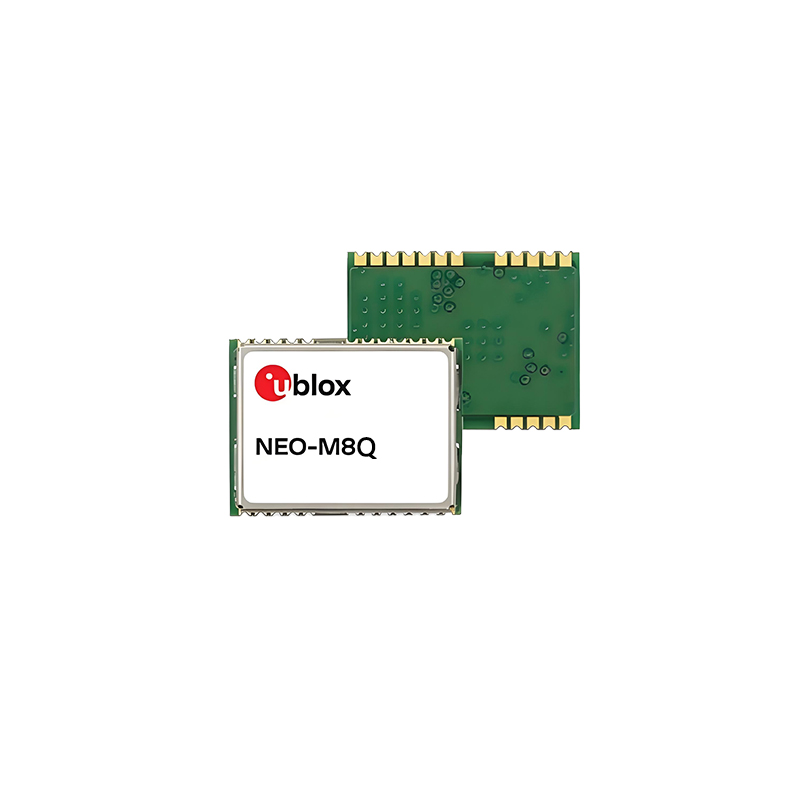

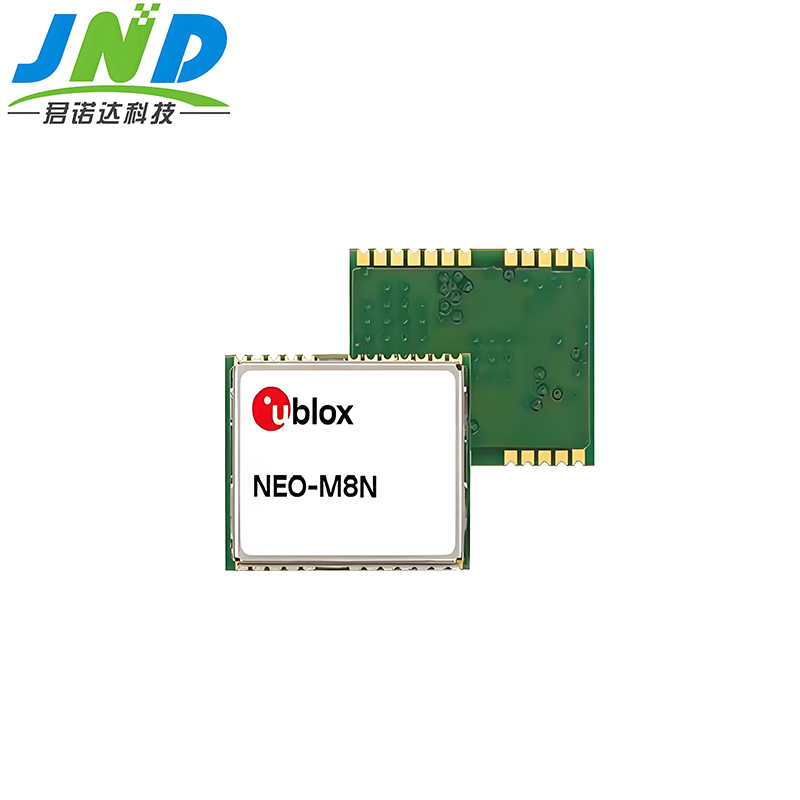

The NEO-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of theu-blox M8 GNSS (GPS, GLONASS, BeiDou, QZSS, SBAS and Galileo-ready1) engine in the industry proven NEOform factor.
        The NEO-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power.The NEO-M8M is optimized for cost sensitive applications, while NEO-M8N/M8Q provides best performance and easier RF integration. The NEO form factor allows easy migration from previous NEO generations. SophisticatedRF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments.The NEO-M8 series combines a high level of robustness and integration capability with flexible connectivityoptions. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades forsupporting additional GNSS systems. This makes NEO-M8 perfectly suited to industrial and automotiveapplications.
        The DDC (I2C compatible) interface provides connectivity and enables synergies with most u-blox cellular
modules. For RF optimization the NEO-M8N/M8Q features an additional front-end LNA for easier antenna
integration and a front-end SAW filter for increased jamming immunity.
        u-blox M8 modules use GNSS chips qualified according to AEC-Q100, are manufactured in ISO/TS 16949certified sites, and fully tested on a system level. Qualification tests are performed as stipulated in the ISO16750 standard: “Road vehicles – Environmental conditions and testing for electrical and electronic equipment”.
        u-blox’ AssistNow Assistance supply aiding information, such as ephemeris, almanac, rough last position and time, reduce the time to first fix significantly and improve the acquisition sensitivity. AssistNow data are with u-blox M8 supporting both GPS and GLONASS constellation for faster acquisition than a GPS-only assistance.The extended validity of AssistNow Offline data (up to 35 days) and AssistNow Autonomous data (up to 6 days)provide faster acquisition after long off time.
